Q4`24-Slots-SOP-新增 coupon 类型

常用的、可固化的业务操作流程规范,如某活动的换皮、赛季资源替换等

修订人:赵恒 修订时间: 2024-11-4

一、概念、术语、类型约定( 后文以此为准):


coupon 类型:

i. 活动通用 coupon: [✅]

ii. 早期 coupon:GiftsItemController,废弃; [❌]

iii. 现行 coupon:CouponItemController; [✅]

二、相关协议:


现行 coupon:

奖励同步:s2c_reward_notice

奖励领取:s2c_claim_key_reward

活动通用 coupon:

奖励同步:s2c_get_activities

奖励领取: c2s_claim_key_reward

三、相关资源:

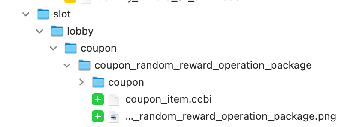

1、资源位置:

默认资源位置:res_xxx/slot/lobby/coupon/


2、效果图:

待补

四、操作步骤 - 现行 coupon:


1、确认资源:

1.1、检查默认 coupon 资源;
1.2、检查弹板资源,如果需求需要:
1.3、注意检查冗余资源;

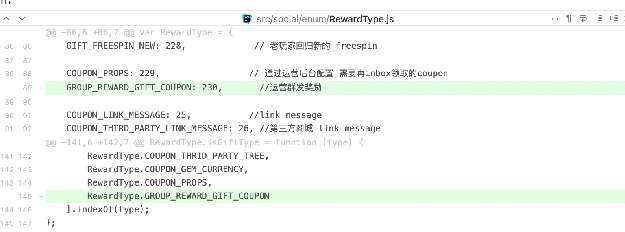

2、注册 coupon 类型:

2.1、文件位置:src/social/enum/RewardType.js
2.2、类型值由服务器确定;
2.3、注册到 RewardType.isGiftType;

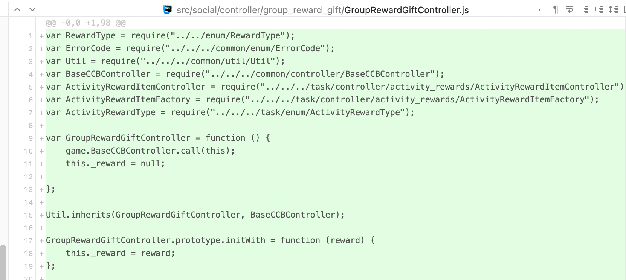

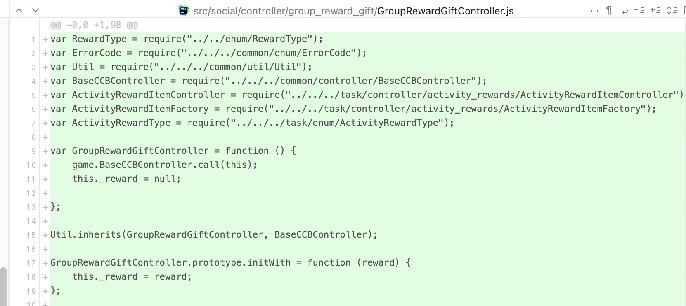

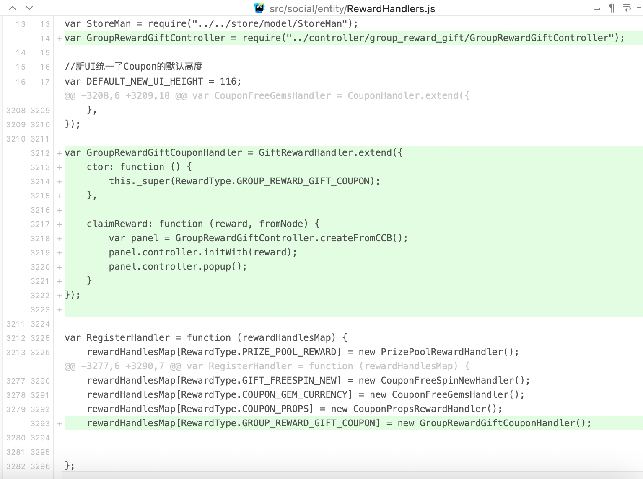

3、注册礼包 handler:

3.1、创建领取弹板;【如果需要】


如果直接在 handler 中调用领奖弹板,需【注意】: 不要使用 game 变量,因为此时 game 变量尚未生成,采用 import 的方式引入所需文件,如 Util.inherits 方式继承;
3.2、继承 GiftRewardHandler;
3.3、重写领取方法,弹板后领取、或直接领取,逻辑自行组织;

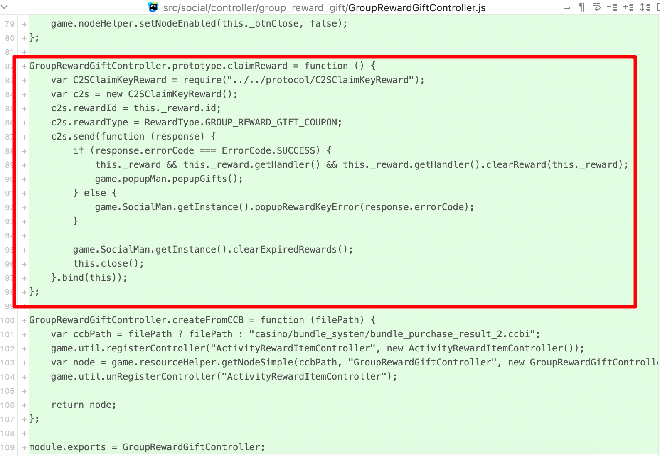

3.4、发送领取协议:

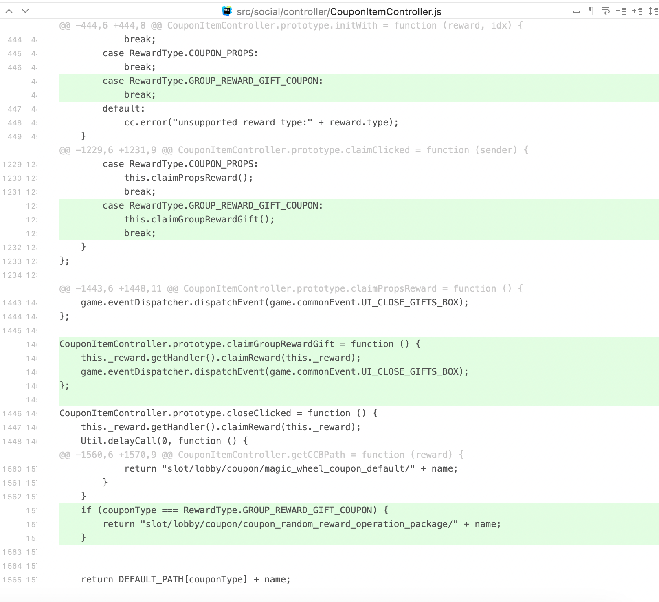

4、注册到通用 CouponItemController:

4.1、初始化显示逻辑:initWith
4.2、注册领取按钮响应:claimClicked
4.3、注册本地默认 CCB 资源路径:getCCBPath

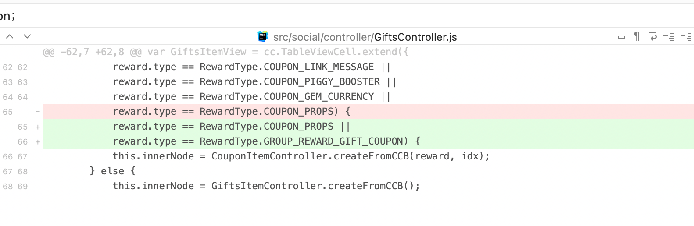

5、关联 CouponItemController 到领奖中心(inbox):

追加类型判定:


四、操作步骤 - 活动通用 coupon:

1、资源检查:

1.1、检查活动 coupon 资源,默认资源位置:各活动资源目录中res_xxx/activity/xxx_xxx;
1.2、检查弹板资源,如果需求需要:
1.3、注意检查冗余资源;

2、注册 coupon 类型:

2.1、文件位置:src/social/enum/RewardType.js
2.2、类型值由服务器确定;
2.3、注册到 RewardType.isGiftType;

3、定义、注册 CouponHanlder:

3.1、创建领取弹板;【如果需要】


如果直接在 handler 中调用领奖弹板,需【注意】: 不要使用 game 变量,因为此时 game 变量尚未生成,采用 import 的方式引入所需文件,如 Util.inherits 方式继承;

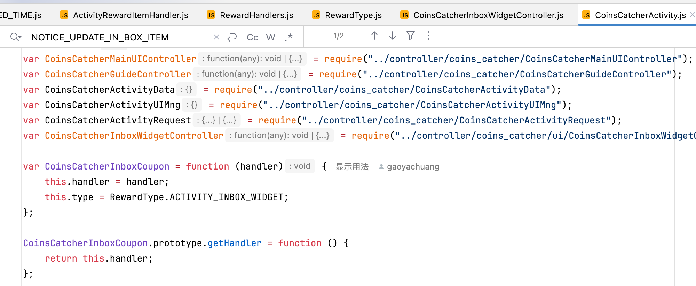

3.2、定义 handler:

type: RewardType.ACTIVITY_INBOX_WIDGET

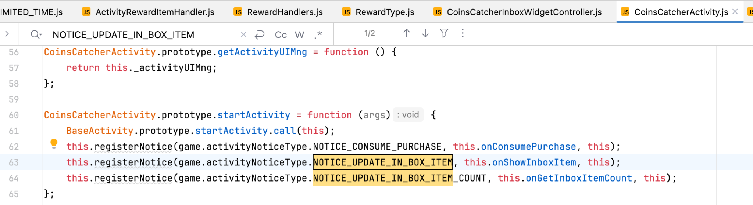

3.3、注册 coupon 关联事件:

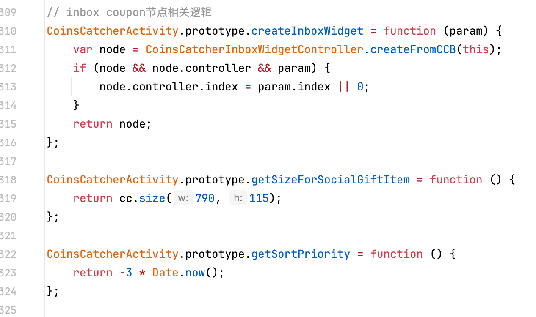

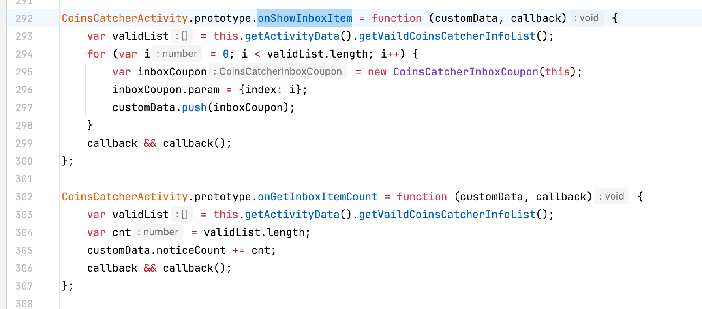

3.4、activity 中重新 couponItem 创建接口:(此时 coupon 的 handler 为活动本身,需要重写的 coupon 通用方法直接在 activity 中重写)非常难看的实现方式;

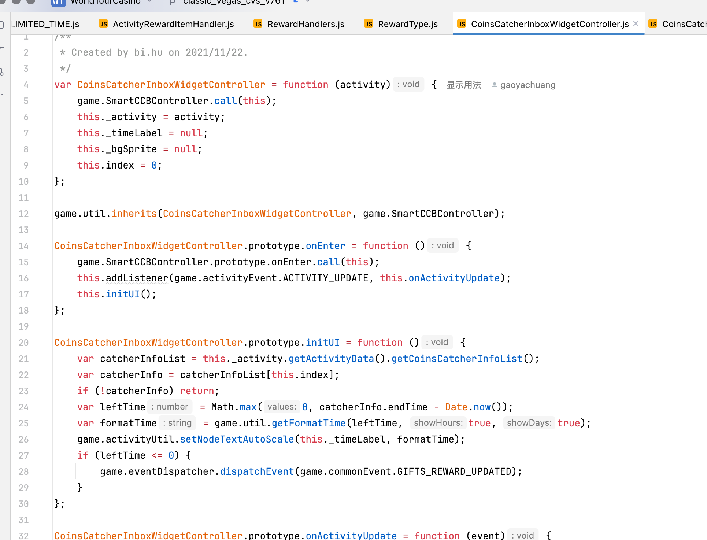

4、注册到通用 CouponItemController:

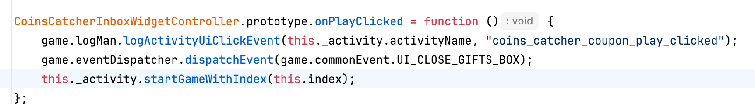

5、领奖、或触发玩儿法,根据需求实现:


五、关键接口说明:


1、关闭领奖中心:

game.eventDispatcher.dispatchEvent(game.commonEvent.UI_CLOSE_GIFTS_BOX);

2、打开领奖中心:

game.popupMan.popupGifts();

3、领取成功、清理奖励:

this._reward && this._reward.getHandler() && this._reward.getHandler().clearReward(this._reward);

4、清理过期奖励:(GiftRewardHandler 有封装,关闭领奖中心的位置有调用)

game.SocialMan.getInstance().clearExpiredRewards();

5、更新inbox图标的红点:

game.eventDispatcher.dispatchEvent(game.commonEvent.GIFTS_REWARD_UPDATED);

6、优先级、顺序:

重写XXXHandler.getSortPriority,数字越优先级越高,如果需要;

7、设置大小、主要是高度:

重写XXXHandler.getSizeForSocialGiftItem,如果需要;

六、注意问题:


1、通常 coupon 领取完成后需要自动关闭领奖中心;
2、过期奖励需清除;
3、如果有领取弹板,领取和关闭按钮都要触发领取;
4、如果有领取弹板,领取、关闭按钮要屏蔽连续点击,且要相互屏蔽;
5、排序:buff 永远在最上面显示;

七、命令、工具:


QA 管理工具-清理 inbox:

http://slots-team-test-server-v0.me2zengame.com:9090/qa/qa.php
image15image16

八、验证、自测:
